In modern manufacturing, plastic injection mold design is the critical process for achieving efficient, precise, and repeatable production. Through well-considered mold structure and process design, defects can be minimized, productivity increased, and manufacturing costs reduced.
Common Software & Recommended Workflow:
CAD Modeling: Use SolidWorks and Creo Parametric to quickly create 3D models of plastic injection components and mold cavities.
DFM Analysis: Employ Protolabs DFM Toolkit or similar plugins to assess the manufacturability of custom plastic parts and provide optimization suggestions.
Mold Flow Simulation: Utilize Autodesk Moldflow and Moldex3D to validate filling, packing, and cooling performance for medical device injection molding and automotive injection products, enhancing the accuracy of plastic injection mold design.

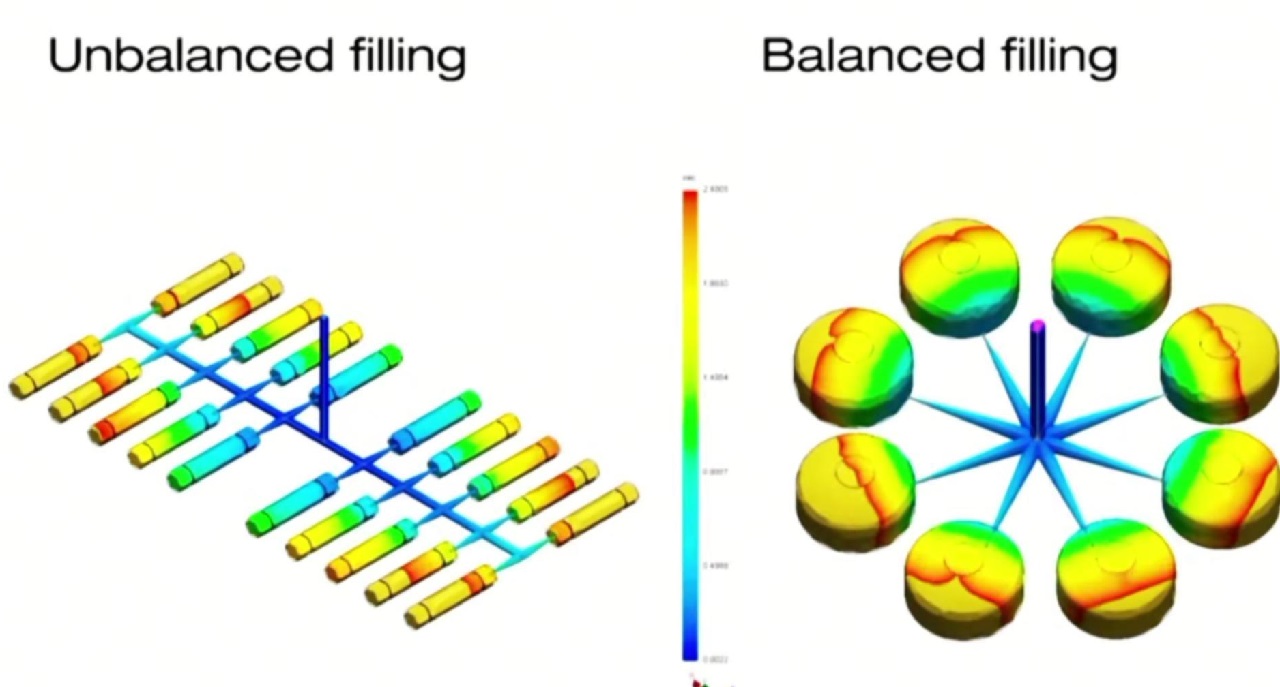

Below is a picture of mold flow analysis：
Virtual Mold Trials: Simulate ejection, lifter, and slider motions to reduce tooling adjustments later and improve mold performance for custom plastic parts.
Secondary Review: Conduct risk assessments and quality system audits in compliance with ISO 13485 and ISO 9001, ensuring the quality of plastic injection components.

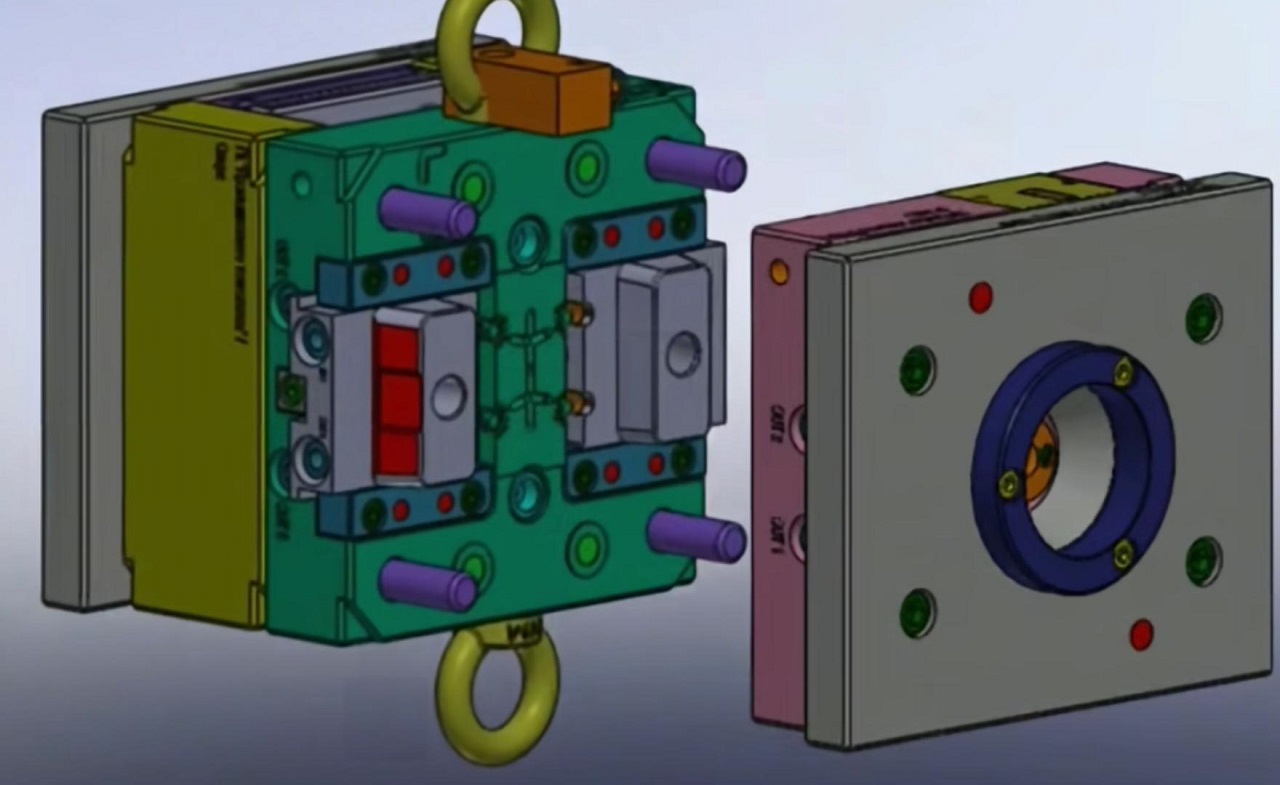

An injection mold primarily consists of the mold base, cavity cores, core inserts, runners, gates, cooling channels, and the ejection system. The mold base provides overall support; cavities and cores define the part geometry and precision; runners and gates channel molten plastic; cooling channels maintain cycle efficiency; and the ejection system releases the finished part. A sound structure is fundamental to successful plastic injection mold design, ensuring consistency in plastic injection components.
In plastic injection mold design, maintaining uniform wall thickness reduces shrinkage and warpage. For custom plastic parts, wall thickness transitions should not exceed a ratio of 1.5:1, and wall thickness distribution should be verified using mold flow simulations.
Selecting the appropriate gate type (hot runner or cold runner) and optimal gate locations ensures balanced filling and improves surface finish for medical device injection molding parts. Parting lines should avoid sharp edges to facilitate smooth ejection of automotive injection components.
All vertical surfaces must have a draft angle of 1–2° to guarantee smooth ejection of plastic injection components without damaging the mold. Guide pins and bushes should have a clearance of 0.01–0.02 mm to maximize mold lifespan and part consistency, meeting the high standards of custom plastic parts.
Choose mold steels such as P20, 718, and NAK80, and use CNC and EDM machining centers to achieve cavity tolerances within ±0.02 mm, meeting the stringent requirements of plastic injection components in medical and automotive sectors.
Design symmetric, efficient cooling circuits to shorten cycle times and prevent thermal stress deformation in medical device injection molding parts.
For overmolding and insert molding applications, plastic injection mold design must strategically position sliders and lifters to balance part complexity and production efficiency, fulfilling the requirements of automotive injection for multifunctional components.
Wall Thickness Variations: Stress concentration causes warpage. Remedy: Optimize wall thickness with mold flow simulation for custom plastic parts.
Uneven Cooling: Hot spots and dead zones lead to deformation. Remedy: Symmetrically arrange cooling channels and use dynamic simulation to adjust flow.
Guiding Clearance Errors: Excessive clearance causes misalignment; too little causes wear. Remedy: Maintain guide pin clearance at 0.01–0.02 mm and schedule regular maintenance.
Incorrect Gate Selection: Improper gate type or position results in incomplete filling. Remedy: Choose gate style based on part geometry and simulation .
Insufficient Venting: Leads to air traps and burn marks. Remedy: Incorporate vents on parting lines or cavities and validate venting performance.
Mismatched Mold Components: Misalignment between mold base and cores causes sticking. Remedy: Perform 3D fit checks and adhere to injection mold inc standards.
Medical Device Mold Design Case
A disposable surgical instrument set produced via medical device injection molding used a four-cavity mold with multi-point gates. Mold flow analysis optimized gate locations, reducing cycle time by 15% and defect rates to 0.5%, showcasing excellence in plastic injection mold design for medical parts.
Automotive Component Mold Design Case
An instrument panel bracket project in automotive injection utilized hot runner and sequential injection technology, combined with rigid lifter design, to produce complex geometry in one shot, simplifying downstream operations and demonstrating advanced plastic injection components manufacturing.
Consumer Electronics Mold Design Case
A smartphone housing as custom plastic parts made from PC/ABS incorporated precision cooling to achieve high-gloss surfaces and low defect rates, exemplifying best practices in plastic injection mold design.
Fast Quotation & Process: Provide free quote with 3D drawing within 24 hours for plastic injection components and custom plastic parts projects.
End-to-End Design Support: Offer DFM analysis, mold flow simulation (Moldflow, Moldex3D), and secondary audits to refine plastic injection mold design and minimize iterations.
One-Stop Service: Cover mold design, mold manufacturing, injection molding, overmolding, and insert molding to meet demands for medical device injection molding and automotive injection.
Quality & Certification: ISO 9001 and ISO 13485 certified, supplying full dimensional inspection and RoHS certification for compliant plastic injection components.
Capacity & Materials: Support prototyping, low to high volume production with materials including PA, POM, PC/ABS, PEEK, PEI to satisfy diverse custom plastic parts applications.
Lead Times & After-Sales: Mold lead time of 4–6 weeks, molded parts in 1–2 weeks; provide dimensional reports, technical support, and maintenance recommendations to ensure successful plastic injection mold design projects.
By applying systematic plastic injection mold design principles, utilizing professional software tools, and referencing extensive case studies, Vanmodel is dedicated to delivering superior custom plastic parts and plastic injection components solutions. For expert support, please contact Vanmodel!
