First-Angle Projection vs Third-Angle Projection in Mechanical Design

In the process of mechanical design and plastic injection mold design, it is crucial to identify whether the drawing adopts first-angle projection or third-angle projection. Especially in workflows such as injection molding process step by step or rapid injection molding, the accuracy in interpreting the drawing directly determines the quality and efficiency of mold manufacturing.

1. Projection Principles and Historical Origins

• First-Angle Projection: The object is placed between the observer and the projection plane, and the drawing shows the component structure in a "flipped" layout.

• Third-Angle Projection: The object is located behind the projection plane, and the view on the drawing matches the actual observation — "what you see is what you get".

These two methods originate from the orthographic projection method proposed by Gaspard Monge in the 19th century and are defined by ISO 5456‑2 and ASME Y14.3 standards in modern mechanical drafting.

2. Global Standards and Usage Preferences

• First-Angle Projection: ISO standard, predominantly used in Europe and Asia (e.g., China, India).

• Third-Angle Projection: ANSI/ASME standard, widely adopted in the USA, Canada, Japan, Australia, etc.

As commonly summarized in engineering communities: “Third-angle projection is generally preferred by American engineers due to its straightforward view alignment, while first-angle remains the standard in Asia and Europe.”

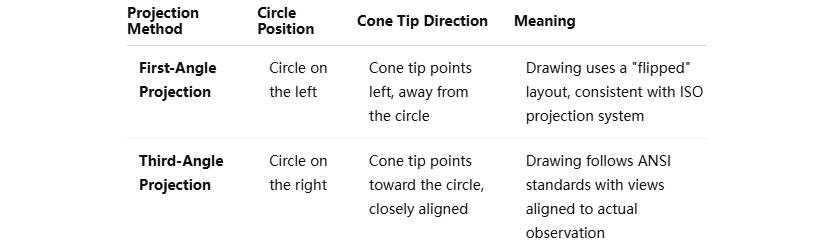

3. Projection Symbol Comparison Table

The “circle + cone” symbol in the lower right corner of the drawing is the key to identifying the projection system. Engineers can determine the method based on this symbol:


4. Differences in View Layout

• First-Angle Projection: Top view is placed below the front view; right view is shown on the left.

• Third-Angle Projection: Top view is above; right view is on the right — matching the actual viewing direction.

5. Application in Injection Mold Workflow

1. Stability of Regional Standards

   • For manufacturing targeting Asia or Europe, plastic injection mold design typically uses first-angle projection for easier comprehension by local teams.

   • For North America or Oceania markets, third-angle projection should be used to align with clients’ engineering workflows.

2. Clear Process Communication

   • In injection molding process step by step, unclear projection symbols may cause misinterpretation of dimensional directions, leading to errors in mold processing and assembly.

3. Support for Rapid Prototyping

   • In rapid injection molding projects, a practical approach is to prepare one set of standard drawings first and add the alternative later, expediting preparation while accommodating multi-regional standards.

     Below is a video about "First-Angle Projection vs Third-Angle Projection". It can help you understand the difference between First-Angle Projection and Third-Angle Projection.


6. Integration of Related External Content

• If you're interested in slide mechanisms within molds, we recommend reading 'What is the Slide in Injection Molds', which thoroughly explains how slides assist in demolding and precision control.

• If you're involved in automotive mold or injection part design, we strongly suggest checking out 'Injection moulding automotive industry', which provides an in-depth look into production flow and common molding challenges — highly relevant to understanding how projection methods impact design.

7. Quality Control and Dimensional Tolerance Considerations

When drafting, it is also important to pay attention to dimensional tolerance systems, such as the International Tolerance Table. Understanding and referencing the Interational Tolerance Table is beneficial during plastic injection mold design and subsequent injection molding process step by step stages, as it helps set precise hole/shaft tolerances and avoid deviations in mold manufacturing and assembly.

Summary and Outlook

• Choose first-angle projection or third-angle projection based on the target manufacturing region and clearly mark the corresponding symbol in the title block of the drawing.

• In plastic injection mold design, injection molding process step by step, and rapid injection molding projects, defining the projection method and tolerance system ensures the reliability of engineering drawings.
