Knowledge and Applications of Special Engineering Plastics

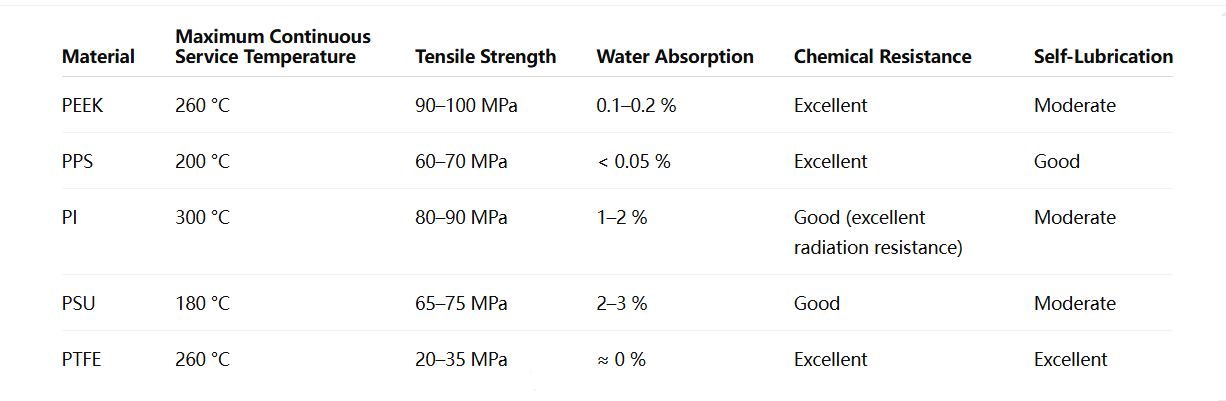

2:Main Types and Properties of Special Engineering Plastics

2.1 Polyarylether Ketones (PAEK: PEEK / PEKK)

• PEEK: Continuous use temperature up to 260 °C, tensile strength 90–100 MPa, water absorption only 0.1–0.2%, and excellent chemical stability.

• PEKK: Similar performance to PEEK but with a higher glass transition temperature, used in high-temperature filters and aerospace structural components.

2.2 Polyphenylene Sulfide (PPS)

• PPS: Maximum use temperature 200 °C, tensile strength 60–70 MPa, water absorption <0.05%, outstanding chemical resistance and dimensional stability.

2.3 Polyimide (PI)

• PI: Both thermosetting and thermoplastic types, continuous use up to 300 °C, tensile strength 80–90 MPa, excellent radiation resistance; used in aerospace insulation and electronic packaging.

2.4 Polysulfone (PSU / PESU)

• PSU / PESU: Heat resistance around 180 °C, high transparency, good toughness; suited for medical devices and food-grade components.

2.5 Polytetrafluoroethylene (PTFE)

• PTFE: Service range −200 °C to +260 °C, extremely low friction coefficient, outstanding chemical inertness; used in valve seals, bearings, and chemical equipment.


  plastic mold design: Material Types & Mold Essentials

  Different families of special engineering plastics demand tailored plastic mold design strategies to handle their unique flow and shrink characteristics:

  • PAEK (PEEK/PEKK): High melt viscosity and processing temperatures call for hot-runner systems, generous cooling channels, and gate designs in plastic mold design that mitigate shear and thermal stress.

  • PPS: Optimized gate location and hot-runner layouts in plastic mold design prevent short shots and voids.

  • PI and PSU/PESU: Balanced runner systems and controlled cooling circuits in plastic mold design avoid internal stress buildup.

  • PTFE: Due to difficult demolding, plastic mold design incorporates larger draft angles and sometimes flexible mold inserts.

  Processing temperature ranges to consider in plastic mold design: PEEK 380–420 °C; PPS 280–320 °C; PI 350–400 °C; PSU/PESU ~180 °C; PTFE –200 °C to +260 °C.



  high precision plastic injection molding: Applications & Benefits

  Employing high precision plastic injection molding achieves tolerances down to ±0.01 mm, with key uses including:

  • Aerospace components: PAEKs molded via high precision plastic injection molding withstand extreme heat and mechanical load.

  • Automotive parts: PPS fuel-system connectors produced by high precision plastic injection molding ensure leak-free performance.

  • Electronic insulators: PI and PSU parts made through high precision plastic injection molding maintain dielectric strength under high temperatures.

  • Wear parts: PTFE’s near-zero friction surfaces benefit from high precision plastic injection molding in sliding applications.

  Critical controls in high precision plastic injection molding include melt-temperature regulation, mold-temperature profiling, injection speed optimization, and full-dimensional inspection.


  medical device molding: Medical-Grade Forming Essentials

  In medical device molding, products must meet biocompatibility, sterilization, and cleanliness requirements:

  • PEEK implants: medical device molding ensures repeated autoclave resistance without deformation.

  • PSU housings: Transparent diagnostic equipment casings via medical device molding allow visual inspection and chemical cleaning.

  • Insert & overmolding: medical device molding integrates multi-material assemblies into single-cycle tools.

  • Certification: medical device molding processes comply with ISO 13485, FDA, and RoHS, accompanied by full-dimensional inspection reports.

  Mold Design & Molding Considerations

  1. Gate & Runner Layout

     • Choose gate types (needle-valve, valve-gate, tunnel) and balanced runners in plastic mold design for uniform cavity filling.

  2. Shrinkage Compensation

     • Factor material shrink rates (PEEK ~0.3 %, PPS ~0.2 %, PI ~0.5 %) into cavity dimensions and include locating ribs in plastic mold design.

  3. Thermal & Pressure Control

     • high precision plastic injection molding parameters: PEEK melt 380–420 °C, mold 150–200 °C; PPS melt 280–320 °C, mold 80–120 °C; PI melt 350–400 °C.

     • Employ conformal cooling channels and precise pressure profiling.

  4. Clean-Room & Certification

     • Conduct medical device molding in ISO 14644-1 clean-rooms; validate biocompatibility and sterilization cycles.
