In modern manufacturing, the development of functional prototypes is crucial for product iteration and market competitiveness. CNC machining and 3D printing are two mainstream prototype manufacturing technologies, each with unique advantages and application scenarios. This article will focus on three core keywords: CNC turning services, automotive CNC machine, and cnc machining for medical, and deeply analyze the technical differences and practical applications of the two through case studies in industries such as automotive, medical, and semiconductor.
I. Technical Principles and Core Advantages
1.1 Precision Machining Capability of CNC turning services
CNC machining achieves high - precision forming by removing materials, and metal turning is one of its core processes. For example, in the automotive industry, CNC turning services can produce engine shaft parts with a tolerance control within ±0.01mm and a surface roughness reaching Ra0.8 - Ra1.6μm. For stainless steel parts, CNC machining can achieve a mirror - polished effect, meeting the hygienic requirements of industries such as food machinery and medical devices. This technology is especially suitable for the manufacturing of cnc car parts that require high - precision rotationally symmetric structures.
1.2 Industry Value of automotive CNC machine
As an important branch of CNC machining, automotive CNC machine is designed and optimized specifically for automotive parts. It can quickly produce complex metal parts such as engine blocks and transmission gears, and cooperate with CNC turning services to achieve multi - process integrated machining. A German car company uses a five - axis automotive CNC machine to machine aluminum alloy suspension arm prototypes, completing multi - surface machining in one clamping, with an efficiency 40% higher than that of traditional machine tools.
1.3 Stringent Standards of cnc machining for medical

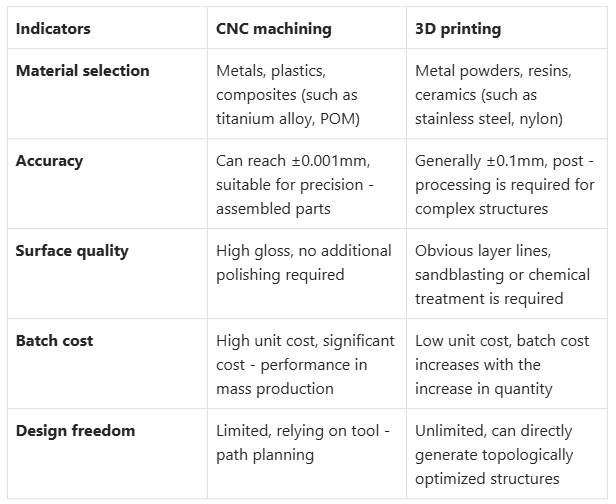

The medical field has extremely high requirements for the accuracy and biocompatibility of medical devices, and cnc machining for medical has emerged as the times require. Taking stainless - steel biopsy needles as an example, their surface roughness needs to reach below Ra0.4μm, and the diameter tolerance is controlled within ±0.005mm. These indicators are achieved through CNC precision turning and grinding processes. In addition, the machining of titanium - alloy artificial joints requires the cooperation of cryogenic cutting technology to avoid material thermal deformation and ensure the precise fit of implants with human bones. II. Key Performance Comparison
III. Industry Application Scenario Analysis 3.1 Application of automotive CNC machine in the Automotive Industry CNC machining: automotive CNC machine combined with CNC turning services can complete the full - process machining from blank to finished product. A domestic new - energy car company uses this technology to produce motor housing prototypes. By integrating drilling, milling, and turning processes, the delivery cycle is compressed to 5 working days. 3D printing: It is used for the lightweight design of cnc car parts, such as printing carbon - fiber - reinforced nylon aerodynamic kits, which can reduce weight by 30% while maintaining structural rigidity, providing support for the range optimization of new - energy vehicles. 3.2 Precision Fixture Manufacturing in the Semiconductor Industry CNC machining performs outstandingly in the field of Component test fixtures for semiconductor industry. The pin pitch of high - precision probe cards needs to be controlled within ±0.005mm, and only CNC micro - machining technology can achieve this accuracy. 3D printing, on the other hand, is used to quickly verify the fixture structure design. By printing functional prototypes with resin materials, engineers can complete multiple design iterations within 3 days.
3.3 Practice of cnc machining for medical in the Medical Industry CNC machining: cnc machining for medical covers the entire product line from surgical instruments to implants. A Medtronic foundry uses medical - grade stainless steel to produce stapler cartridge components through CNC turning. Each process is subjected to three - dimensional inspections to ensure compliance with the ISO 13485 quality management system.
3D printing: It focuses on personalized needs, such as customized titanium - alloy interbody fusion devices. Through medical imaging data modeling, 3D printing technology can generate implants with bionic trabecular structures, promoting bone cell growth. Compared with the solid structures processed by traditional CNC machining, the postoperative healing time is shortened by 20%.
IV. Cost and Efficiency Analysis
4.1 Unit Cost and Batch Production Characteristics
3D printing: For metal prototyping, it has an obvious unit - cost advantage. Taking a stainless - steel fixture prototype as an example, the cost of DMLS technology is about 60% of that of CNC machining, especially suitable for small - batch (1 - 10 pieces) rapid verification.
CNC machining: As the batch size increases, the cost advantage becomes significant. Data from a domestic machining parts manufacturers shows that when the order quantity of aluminum - alloy parts exceeds 50 pieces, the unit cost of CNC machining is 35% lower than that of 3D printing, with a significant scale effect.
4.2 Delivery Cycle Comparison and Emergency Response
3D printing: Complex - structure prototypes can be delivered within 24 hours, making it the first choice for emergency projects. A mobile phone manufacturer used 3D printing of nylon prototypes to complete three rounds of design optimization within 72 hours in order to verify the structure of a new folding - screen hinge before the product launch.
CNC machining: It needs to go through processes such as programming, tool preparation, and process debugging. The delivery cycle for simple parts is 3 - 5 days, and 7 - 10 days for complex parts. However, for the iteration of mature products, its stable machining quality is still a reliable choice.
V. Selection Strategies and Technology Adaptation
5.1 Scenarios with Priority for CNC Machining
High - precision assembly requirements: For example, the piston pins of automobile engines and the bearing surfaces of medical joints require a tolerance control within ±0.002mm, and only CNC machining can meet this requirement.
Surface quality requirements: The mirror polishing of stainless steel parts and the passivation treatment of medical devices can be directly completed by CNC machining without additional post - processing.
Preparing for mass production: When the prototype passes the test and enters the small - batch trial - production stage, the cost advantage and quality stability of CNC machining make it a bridge to mass production.
5.2 Scenarios with Priority for 3D Printing
Complex geometric structures: Such as hollow turbine blades in aerospace and micro - channel chip fixtures in semiconductors, 3D printing can directly generate concave and hollow structures that cannot be processed by traditional CNC.
Personalized customization: The patient - specific design of medical implants and the customized needs of automotive modification parts can be seamlessly connected by 3D printing with "design - to - production".
VI. Future Trends: Technology Integration and Intelligent Upgrading
Currently, hybrid manufacturing technology is becoming a hot topic in the industry. For example, first, use CNC machining to complete the main structure of metal parts, and then use 3D printing to add heat - dissipation fins or weight - reducing holes locally, taking into account both accuracy and design freedom. In addition, the combination of automotive CNC machine and the industrial Internet of Things enables real - time monitoring of the machining process, and the accuracy of tool - life prediction is increased to 92%, further reducing the risk of downtime.
Conclusion: CNC machining and 3D printing each have their own advantages in the manufacturing of functional prototypes. Vanmodel, with its in - depth understanding of CNC turning services, automotive CNC machine, and cnc machining for medical, can provide accurate solutions according to the needs of different industries. Whether you need high - precision metal part machining or rapid iteration of complex prototypes, Vanmodel can be your reliable partner. Contact us immediately and let professional manufacturing technology accelerate your product innovation!
